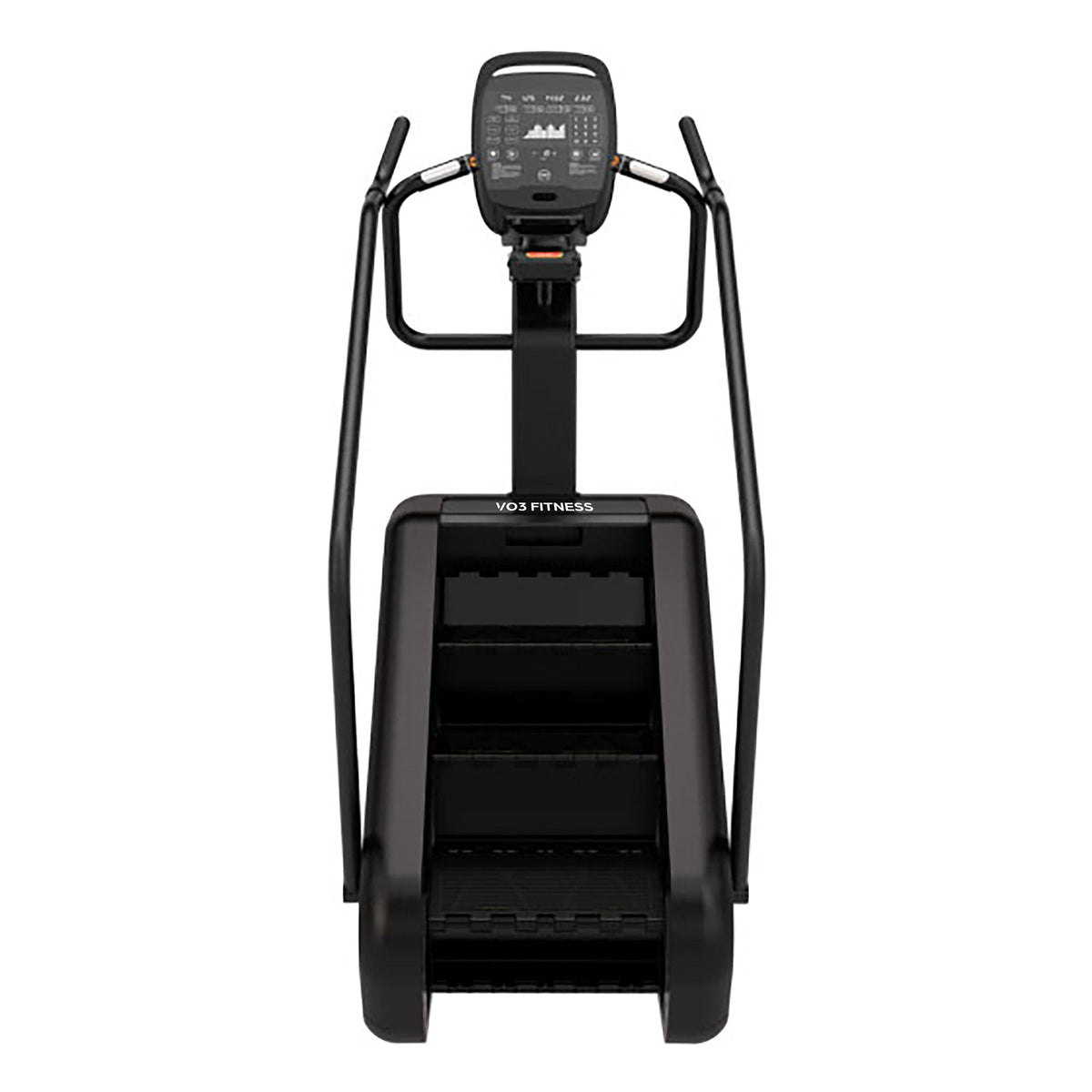

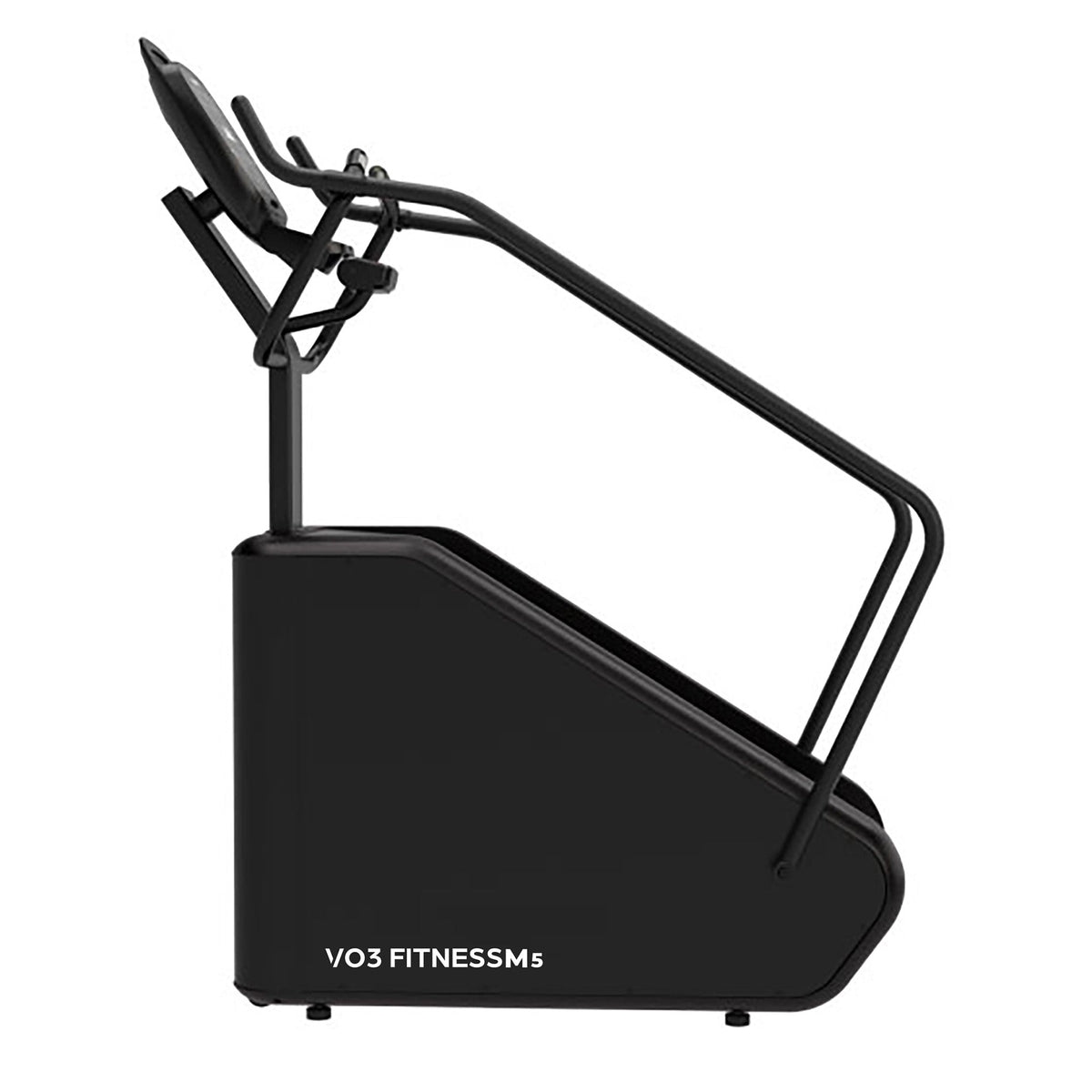

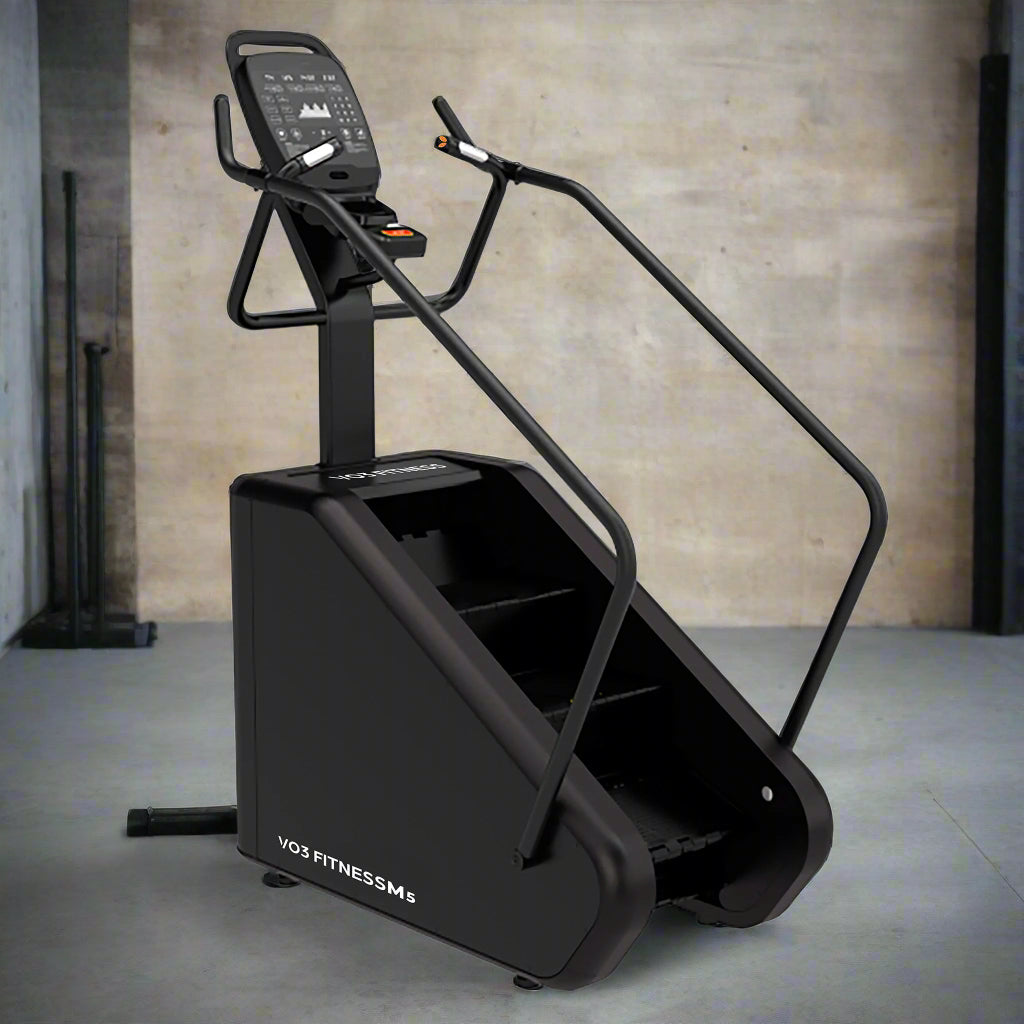

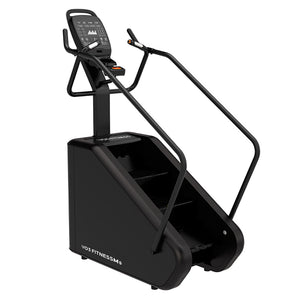

VO3- SM5 Stepmill

VO3-SM5 Stepmill

The VO3-SM5 Stepmill is a compact, commercial-grade cardio machine engineered for performance, safety, and convenience. With a minimum recommended ceiling height of 8’, it fits seamlessly into most fitness spaces while delivering a powerful, high-intensity workout.

Featuring oversized 17.7" × 11" steps with a 7" step height, the VO3-SM5 provides stability and comfort for a wide range of users, supporting up to 330 lbs. A bright multi-window LED display keeps you informed with real-time feedback, while 11 built-in programs add training variety to keep you motivated.

For added safety, a photo-optic sensor automatically stops the unit if the user exceeds the lower limit of step travel. Convenient features such as handlebar-mounted resistance and controls, a 2-speed cooling fan, and an accessory holder make every workout efficient and enjoyable. With 20 resistance levels and speeds of up to 157 steps per minute, the VO3-SM5 is built to challenge even the most dedicated athletes.

Key Features

• Compact size fits through standard doorways and requires only an 8’ minimum ceiling height
• Bright white multi-window LED display keeps you informed
• 11 programs add variety and motivation to your workout
• Step dimensions: 17.7" width, 7” height, 11" depth
• Supports users up to 330 lbs
• Photo-optic safety sensor automatically stops the unit if the lower limit of step travel is exceeded
• Accessory holder and built-in 2-speed fan for convenience
• Handlebar controls for resistance, start/stop/pause functions
• Contact and wireless heart rate monitoring (chest strap not included)
• 20 levels of resistance and speeds up to 157 steps per minute
• Transport wheels for effortless movement when not in use

Specifications

• Performance
  • Motor: EMS Magnetic Control Wheel
  • Power: 120V/15A Cord/Outlet
  • Drive System: Chain and Poly-V Belt with Electromagnetic Induction Brake
  • Steps per Minute: 25 – 157
  • Resistance Levels: 0 – 20 Magnetic Resistance
• Console
  • Display: 6 LED Windows (4.5” diagonal)
  • Feedback: Program, Level, Vertical Distance, Heart Rate, METS, Calories, Calories per Minute, Watts, Time, Steps per Minute, Steps, Floors
  • Programs: WFI and CPAT Fitness Tests, Fat Burning, Training, Rolling Hills, Challenge, Interval, Target (3 options), User Program
• Dimensions
  • Set-Up Dimension: 62.7" L × 31" W × 78.6" H
  • Box Dimension: 57.3" L × 32.7" W × 43.9" H
  • Item Weight: 337 lbs
  • Box Weight: 485 lbs
  • Max User Weight Capacity: 330 lbs
  • Minimum Ceiling Height: 8 ft
• Frame
  • Commercial-Grade Steel Frame with Plastic Coverings
  • 7 Total Steps with ABS Lining
  • Step Area: 17.7” L × 11” W × 7” H
  • Ground to First Step Height: 11.8”
  • Between Step Height: 7”
  • Step Depth: 11”
  • Steel Handrails with Durable Grip Coating
• Convenience
  • Handlebar Controls
  • Hand Pulse Sensors
  • Bluetooth Heart Rate Receiver (Chest Strap Sold Separately)
  • Emergency Stop
  • Reading/Accessory Rack
  • Cooling Fan
  • Transportation Wheels
