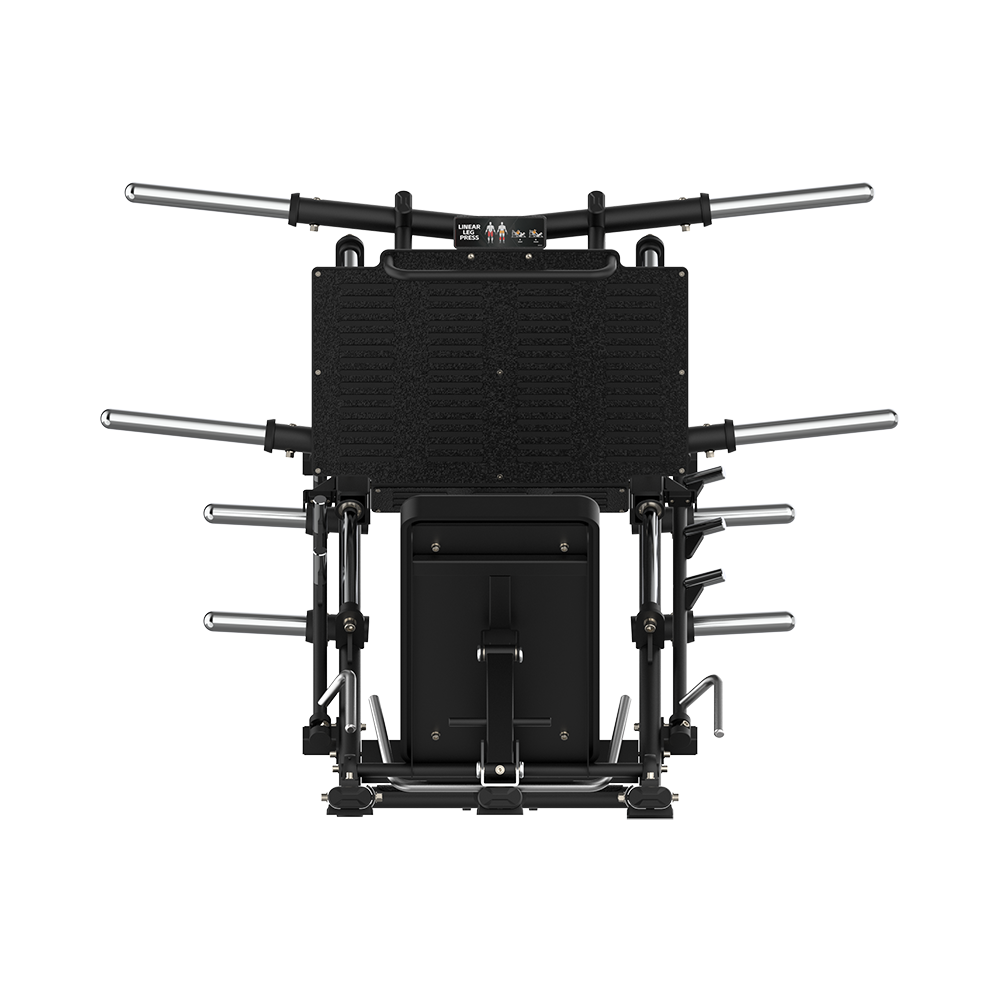

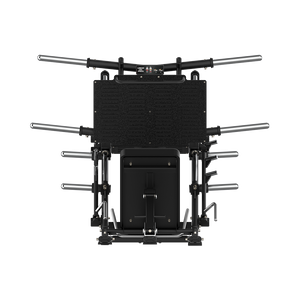

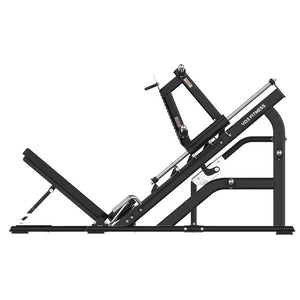

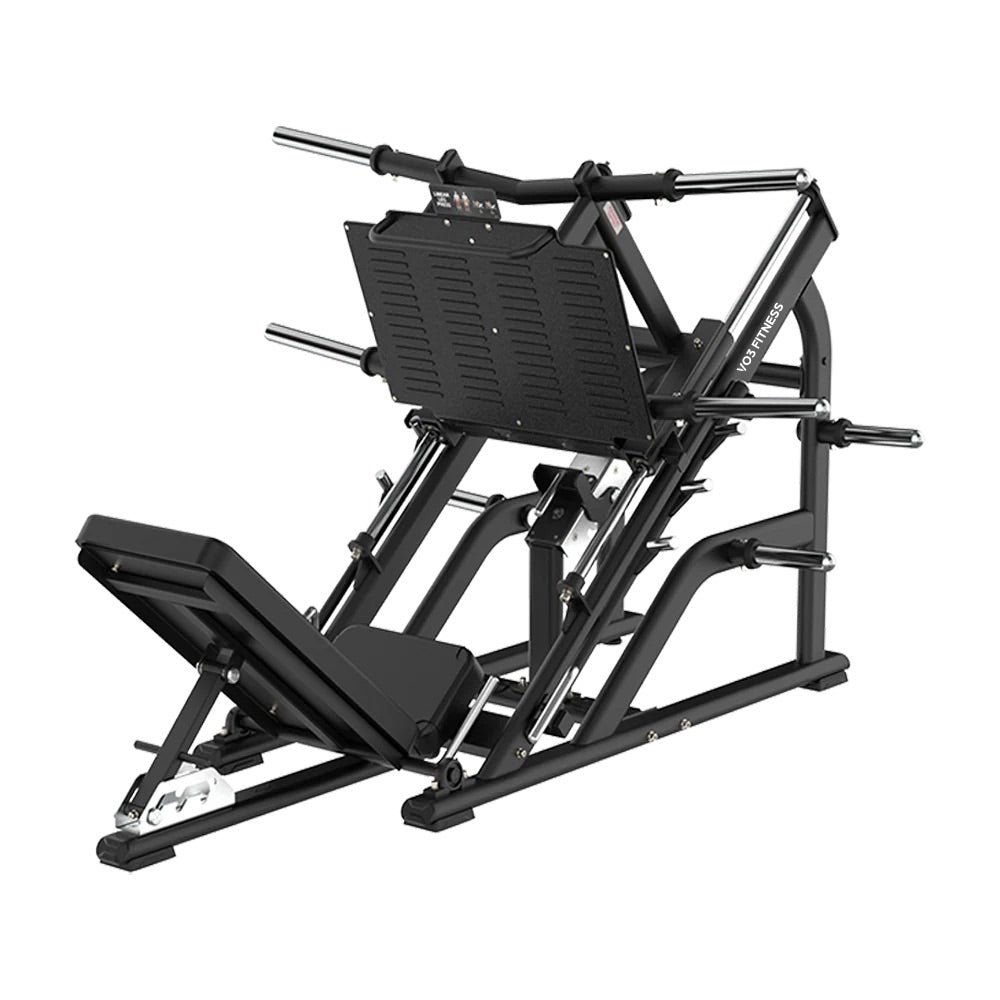

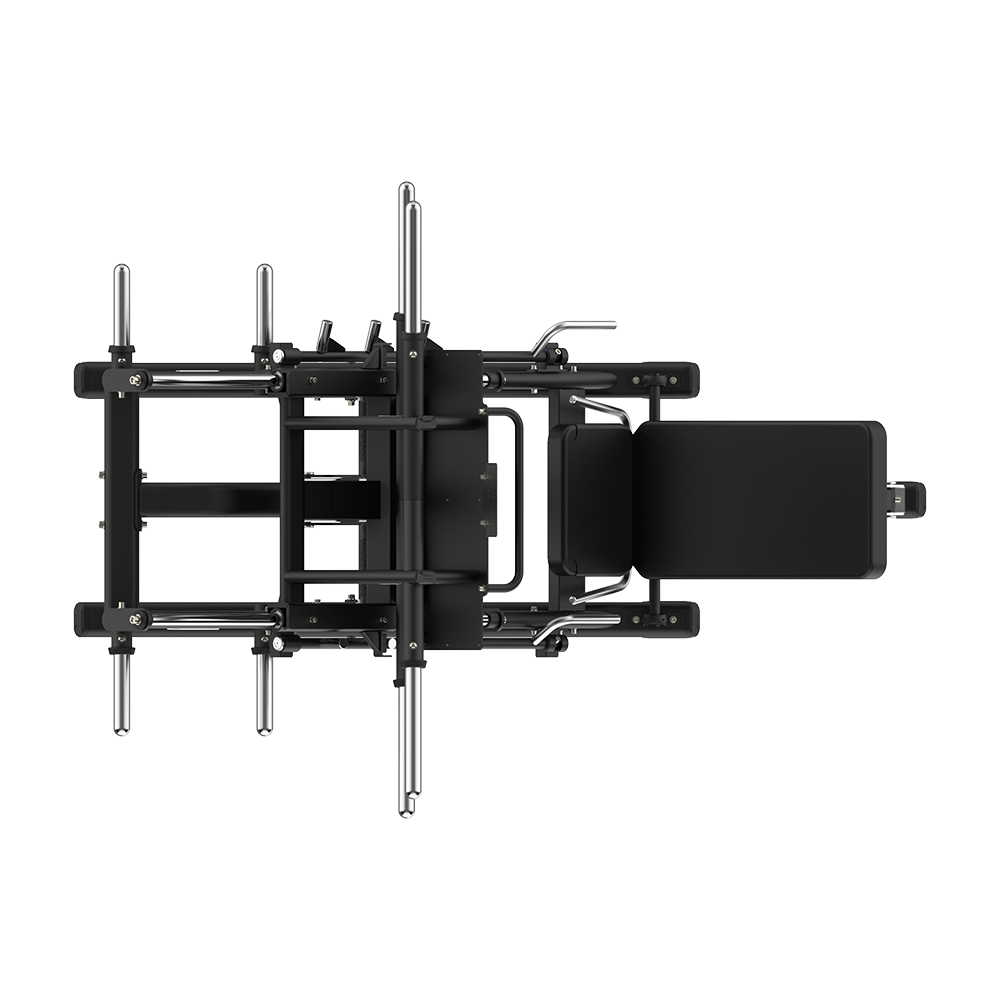

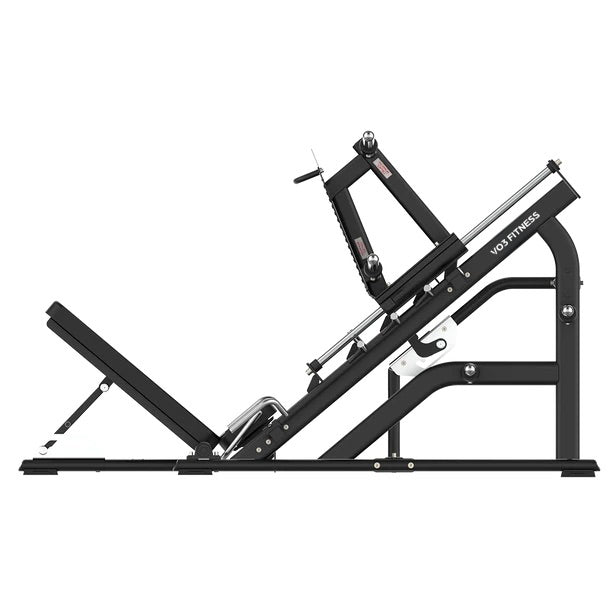

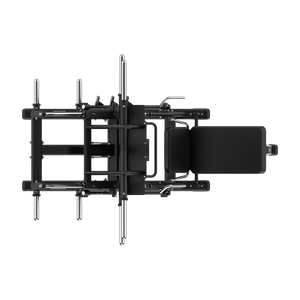

VO3 ONYX Series Linear Leg Press
Volume pricing, freight, install and lease options are consolidated into one quote by your commercial specialist.
Lease options available on most commercial orders. Final terms confirmed in your quote.
Unleash maximum lower-body strength with the VO3 ONYX Series Linear Leg Press. Built for heavy commercial use, university varsity weight rooms, and serious training clubs, the ONYX Linear Leg Press delivers a smooth, frictionless pressing trajectory capable of handling extreme loads up to 600 kg (1,322 lbs). Engineered with high-precision spherical bearings, multi-tier safety lockout mechanisms, and an ergonomic 3-position contoured backrest, it guarantees rock-solid stability and comprehensive lower-body development without excessive spinal compression.
Key Features
- Heavy-Duty 600 kg (1,322 lb) Max Load Capacity: Massive load-bearing capacity engineered to accommodate competitive powerlifters, bodybuilders, and collegiate athletes.
- Precision Spherical Cushion Bearing System: Commercial-grade glide mechanism eliminates friction and ensures whisper-quiet, ultra-smooth movement even under maximum plate loading.
- Oversized Multi-Angle Textured Footplate: Precision-calculated extra-wide foot platform accommodates narrow, wide, high, and sumo stances, featuring a dedicated lower anti-slip fold for secure calf raises.
- Dual Multi-Tier Safety Protection: Equipped with 3-position release/lockout levers and 3-position adjustable mechanical safety stops for fail-safe lifting at any user height.
- Ergonomic Pelvic Support & 3-Position Backrest: Anatomically contoured bucket seat stabilizes the pelvis, while the 3-position backrest inclination adapts to various flexibility levels and isolates quads vs. glutes.
- Integrated Mounting & Stabilizer Handles: Dual high-grip tactile handles improve body stability during heavy sets and assist with mounting and dismounting.
- Industrial Heavy-Gauge Steel Frame: Constructed with PT 50×100×2.5 mm and PT 40×80×2.5 mm heavy commercial steel profiles finished in scratch-resistant matte electrostatic powder coat.
- 4 Built-In Plate Storage Horns: Integrated hard-chrome weight horns keep Olympic bumper and cast-iron plates organized and readily accessible at the machine.
Targeted Muscle Groups
- Primary: Quadriceps (Rectus Femoris, Vastus Lateralis, Vastus Medialis)
- Secondary: Gluteus Maximus, Hamstrings, Adductors, Gastrocnemius / Soleus (Calves)
Specifications & Details
| Product Name | VO3 ONYX Series Linear Leg Press |
| Model / SKU | VO3-COM-OS-7019 |
| Brand / Vendor | VO3 Fitness |
| Duty Rating | Full Commercial |

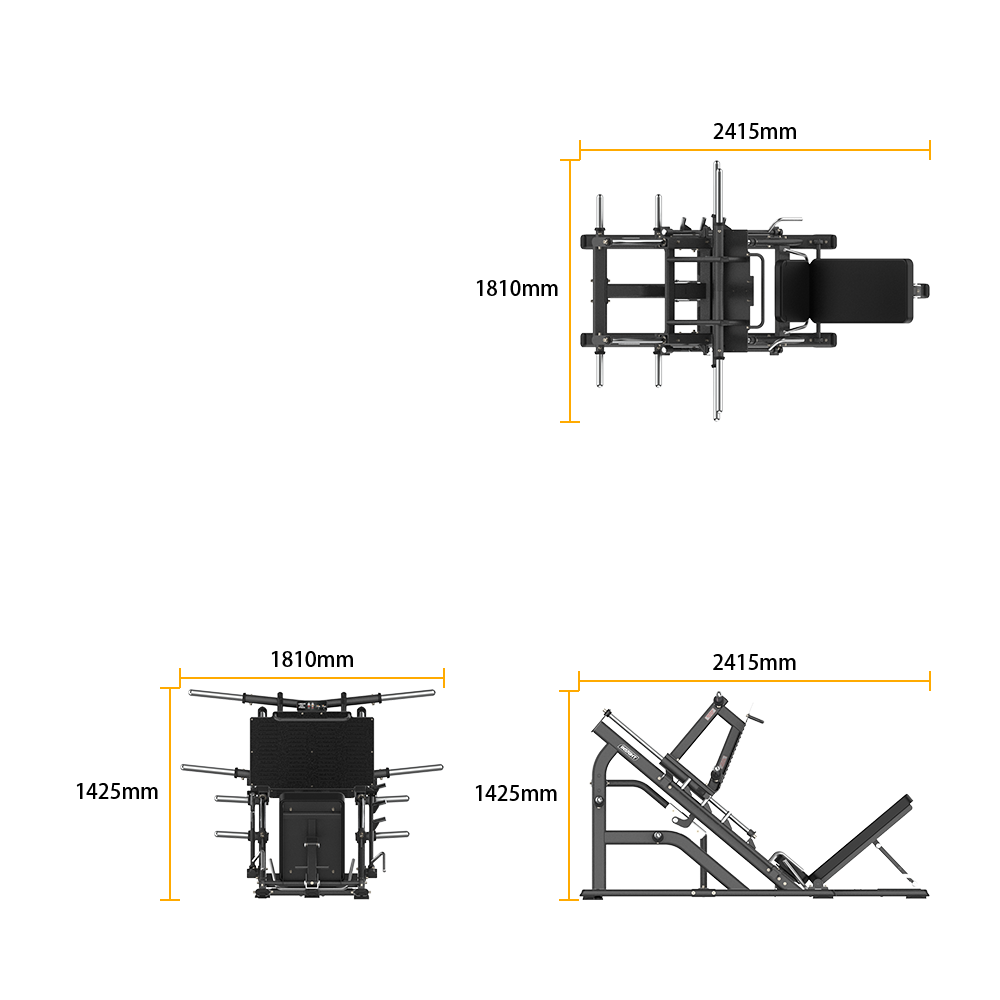

| Assembled Dimensions | 241.5 cm (L) × 181.0 cm (W) × 142.5 cm (H) / 95.1" L × 71.3" W × 56.1" H |
| Machine Net Weight | 275 kg (606.3 lbs) |
| Starting Weight (Unloaded) | 55 kg (121.3 lbs) |
| Max Load Capacity | 600 kg (1,322.8 lbs) |
| Bearing Mechanism | Industrial High-Precision Spherical Bearings & Guided Linear Rails |
| Main Frame Tubing | PT 50×100×2.5 mm & PT 40×80×2.5 mm Commercial Steel |
| Backrest Adjustments | 3-Position Adjustable Angle with Contoured Lumbar Support |
| Safety Mechanisms | 3-Position Lockout Levers + 3-Position Bottom-Out Mechanical Safety Stops |
| Weight Horns | Dual Sided Hard-Chrome 2" Olympic Loading Sleeves + 4 Storage Horns |
| Commercial Warranty | 10-Year Frame • 5-Year Parts • 1-Year Labour |
Specifications
| Footprint (L × W × H) | 95.1" × 71.3" × 56.1" |
|---|---|
| Unit weight | 606 lb |
| Weight stack | 1323 lb |
| Duty rating | Full Commercial |
| Commercial warranty | Frame: 10 Yrs | Bearings: 3 Yrs | Parts: 1 Yr |
Commercial Services & Project Capabilities
Consolidated Commercial Proposals — Combine multiple commercial brands, freight, delivery, and leasing into one unified quote.
Delivery & Assembly Options — Tailored deployment available from dock freight to complete on-site unboxing, mechanical assembly, and positioning.
Warranty & Service Support — Manufacturer warranty coordination, genuine OEM parts and Canadian service technicians.
